Tooling accounts for a significant portion of manufacturing costs. Yet, premature die failure is most often traced back to improper material selection. Manufacturers frequently waste resources replacing cracked or worn dies. In cold forming operations, friction, pressure, and impact remain constant forces. Selecting the right Cold Work Tool Steel requires balancing abrasive wear resistance against impact toughness. A slight miscalculation here leads to ruined parts and stalled assembly lines.
This guide provides a metallurgical and commercial framework for evaluating your options. We will explore how to shortlist and source die materials effectively. You will learn to maximize tool life and minimize cost-per-part across your facility. By understanding failure modes, you can engineer solutions before production even begins.
Tool steel selection is dictated by the primary failure mode of the application: abrasive wear, adhesive wear (galling), or chipping/cracking.
The industry standard D2 is being rapidly replaced by advanced matrix steels like DC53, which offer superior toughness without sacrificing wear resistance.
Raw material cost represents less than 15% of total tooling cost; prioritizing machinability and heat-treat stability yields a higher ROI.
Partnering with a verified cold work tool steel supplier ensures access to certified mill reports, ultrasonic testing, and precise thermal processing data.
Before selecting a steel grade, engineering teams must identify how previous tools failed. Die failure rarely happens by chance. It usually follows a predictable pattern dictated by the work material and the forming process. You must analyze these forces to select the correct defense mechanism.
Wear occurs in two distinct forms during cold forming. Abrasive wear happens when hard particles in the work material continuously scratch the die surface. Think of it as microscopic sandpaper slowly erasing the tool's dimensions. Adhesive wear, commonly called galling, operates differently. High friction and pressure cause the work material to micro-weld itself to the tool surface. When the tool retracts, it tears these welds apart, leaving a rough, damaged finish. Adhesive wear frequently plagues operations forming aluminum, copper, or austenitic stainless steel.
Sharp die edges and narrow punches face extreme impact forces. Under these conditions, the tool either chips or bends. Chipping constitutes a catastrophic failure. A small piece of the tool breaks off, instantly destroying part quality. This risk spikes heavily when stamping Advanced High-Strength Steels (AHSS). AHSS requires immense cutting pressure. When the material finally fractures, it sends a massive snap-through shockwave back into the tooling. Plastic deformation occurs when the tool lacks the compressive strength to withstand the strike. The tool mushrooms or bulges out of tolerance.
To choose the correct stamping die steel, you must reverse-engineer the problem. The optimal material prioritizes the exact inverse of the anticipated failure mode. Consider this logical framework:
If historical data shows severe chipping, you must prioritize impact toughness over maximum hardness.
If abrasive wear destroys dimensions rapidly, you must prioritize high carbide volume and hardness.
If adhesive wear dominates, you need materials optimized for high-temperature surface coatings (PVD/CVD).
By defining success through failure prevention, you eliminate guesswork.
Metallurgy involves unavoidable compromises. You cannot maximize every physical property simultaneously. Evaluating a cold work die steel requires understanding four fundamental dimensions. Finding the right balance dictates your ultimate production success.
This relationship represents the core metallurgical trade-off. High wear resistance demands a large volume of hard carbide particles distributed throughout the steel matrix. However, these same carbides act as stress concentrators. When subjected to severe shock, cracks initiate at the carbide boundaries. Therefore, higher carbide volume inherently reduces impact toughness. You must decide whether the tool will fail by wearing out slowly or breaking suddenly.
Compressive strength prevents a tool from squashing under pressure. We typically measure this via Rockwell Hardness (HRC). Striking forces in heavy blanking require steels capable of maintaining 58 to 62 HRC. If the core hardness drops too low, the cutting edge will roll over. Once plastic deformation begins, friction spikes, and catastrophic failure follows closely.
Material selection heavily influences your toolroom throughput. High-wear steels resist grinding wheels just as effectively as they resist sheet metal. CNC machining and wire EDM times increase dramatically with highly alloyed grades. Furthermore, wire EDM creates a brittle recast layer on the steel surface. Some advanced matrix steels machine much faster and respond better to post-EDM stress relieving than conventional high-carbon grades.
Complex die geometries often warp or distort during heat treatment. Dimensional stability refers to a material's ability to hold its machined shape through the aggressive heating and quenching cycles. Poor stability requires toolmakers to leave excessive grind stock on the block. This increases post-heat-treat finishing costs. Advanced grades offer isotropic properties, meaning they move predictably and uniformly during thermal processing.
The market offers dozens of proprietary alloys. However, most fall into three distinct categories based on their manufacturing process and carbide structure. Understanding these tiers helps you match the steel to the severity of the application.
Tool Steel Grade Comparison Summary
Grade Category | Common Examples | Wear Resistance | Impact Toughness | Best Application |
|---|---|---|---|---|
Conventional Baseline | O1, A2 | Low to Moderate | Moderate | Low-volume, simple forming runs |
Conventional High-Carbon | D2 | Excellent | Low | High-abrasion, low-impact stamping |
Advanced Matrix | DC53 | Excellent | Very High | Heavy blanking, AHSS, high-impact punches |
Powder Metallurgy (PM) | PM M4, CPM 10V | Maximum | Moderate to High | Ultra-high-volume, extreme abrasion |
Conventional steels serve as the traditional baseline. Grades like O1 and A2 offer excellent machinability and predictable heat treatment. They remain perfect choices for low-to-medium volume production runs where tooling budgets remain tight. A2 provides moderate toughness but lacks the wear resistance needed for aggressive, high-speed stamping.
D2 remains the traditional workhorse of the stamping industry. It delivers excellent wear resistance due to its massive, blocky primary chromium carbides. However, these large carbides create severe structural weaknesses under impact. Consequently, D2 proves highly susceptible to micro-chipping in heavy-duty blanking applications. While cheap to purchase, D2 often costs more in the long run due to unexpected maintenance.

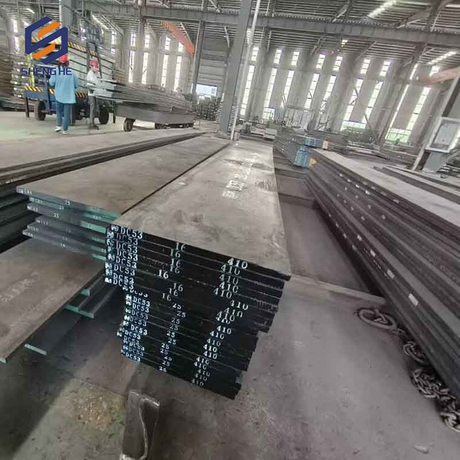

Metallurgical advancements have engineered solutions to the D2 chipping problem. DC53 cold work tool steel represents the modern upgrade to conventional D2. Steelmakers create matrix steels by modifying the chemical composition to eliminate massive primary carbides. They achieve a fine, evenly distributed carbide structure. This refinement allows DC53 to reach higher hardness levels (62-64 HRC) while simultaneously doubling the impact toughness of standard D2.
Matrix steels excel in heavy blanking, cold forging, and high-stress forming. They thrive exactly where D2 historically fails via chipping. Furthermore, their uniform structure vastly improves machinability and reduces heat-treat distortion.
Powder metallurgy represents the pinnacle of tool steel manufacturing. Instead of pouring molten steel into ingots, the steel is atomized into fine powder and compacted under extreme heat and pressure. This process eliminates carbide segregation entirely. Grades like PM M4 and CPM 10V offer an extremely uniform carbide distribution.
You can achieve maximum wear resistance alongside respectable toughness. However, PM steels command premium prices. They are incredibly difficult to machine and grind. You should justify PM steels only for ultra-high-volume runs where extreme abrasive wear constitutes the primary failure mode. You must calculate a strict return on investment before specifying PM grades.
Selecting the right steel requires analyzing the specific function of the die component. A punch experiences vastly different stresses than a forming pad. Applying the same steel across the entire die set usually leads to suboptimal performance.
Punches endure the most brutal conditions in any die assembly. They must punch through the material, survive the snap-through shock, and withstand the abrasive friction of the stripping cycle. Therefore, a proper tool steel for punches requires high compressive strength to prevent mushrooming, combined with exceptional toughness to prevent snapping. Advanced matrix steels like DC53 or specific shock-resisting grades (like S7, though it sacrifices wear resistance) fit this profile perfectly.
Blanking thick plates or high-tensile materials demands extreme edge retention. The sudden release of energy when the material fractures sends shockwaves through the die block. Blanking die steel must focus on high impact toughness. If the die edge chips, a burr forms on the manufactured part immediately. Matrix steels and high-toughness PM steels provide the necessary resilience to keep edges intact over long production runs.
Forming and coining operations rarely involve cutting. Instead, they stretch, squeeze, and compress the metal. Here, friction takes center stage. You must prioritize high resistance to adhesive wear and galling. Often, the base steel alone cannot prevent galling on difficult materials like stainless steel. In these cases, you must choose a steel that responds well to surface treatments. The steel must maintain a high core hardness even when subjected to the elevated temperatures of PVD or CVD coating processes.
Procuring premium steel only solves half the equation. The material will fail catastrophically if thermal processing protocols are ignored. Heat treatment physically alters the crystalline structure of the metal. Poor execution destroys the properties you paid for.
Austenitizing and tempering require strict temperature controls and precise soak times. If a commercial heat treater rushes the process, the steel may not achieve full hardness. Conversely, overheating causes grain growth, which plummets impact toughness. You must ensure your heat treater follows the exact data sheet provided by the steel mill.
During the quenching process, not all the steel's microstructure converts to hard martensite. Some of it remains as soft, unstable austenite. Over time, or under mechanical stress, this retained austenite spontaneously transforms into martensite. Because martensite takes up more volume, the tool physically grows. This dimensional change ruins tight-tolerance dies. To prevent this, quality tool steels require cryogenic treatment (deep freezing) between tempering cycles to eliminate retained austenite.
Many modern stamping operations rely on Physical Vapor Deposition (PVD) or Chemical Vapor Deposition (CVD) coatings to reduce friction. However, applying these coatings requires exposing the tool to high temperatures, often exceeding 450°C. If your chosen steel was tempered below this coating temperature, the tool will lose its core hardness during the coating process. The hard coating will then collapse like eggshell over a soft interior. Always match your steel's high-temperature tempering capabilities with your coating vendor's process.
Sourcing reliable material prevents catastrophic failures before machining begins. The global steel market contains significant variations in quality. A block of generic D2 from one mill may behave entirely differently than D2 from another. Partnering with a credible cold work tool steel supplier mitigates this risk.
Never accept undocumented steel. Insist on original mill test reports (MTRs) for every block. These documents verify the chemical composition, ensuring it meets strict industry standards. They also indicate the cleanliness of the melt, confirming the absence of severe non-metallic inclusions.
Internal defects hide beneath the surface of raw steel blocks. Micro-cracks or voids will destroy a tool after you have invested thousands of dollars in CNC machining and EDM work. Look for suppliers that mandate rigorous ultrasonic testing. Standards like SEP 1921 ensure the block is structurally sound from the inside out.

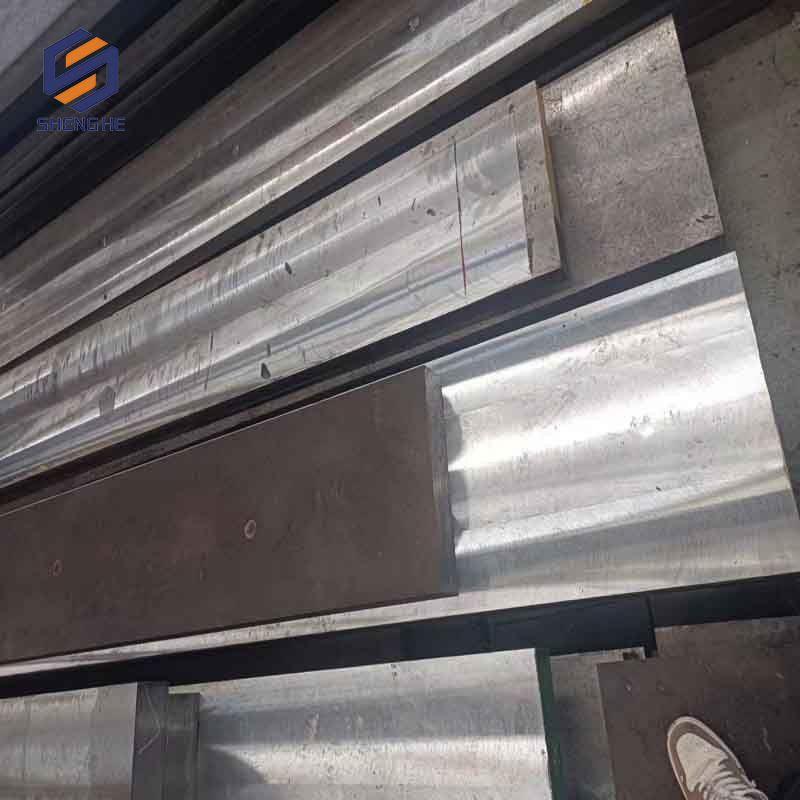

Evaluate your supplier's physical capabilities. Can they provide pre-machined, ground-to-tolerance blocks? Offloading the initial rough milling and grinding to your supplier dramatically reduces internal machining bottlenecks. It allows your highly skilled toolmakers to focus on complex features rather than squaring up raw blocks.
A premier supplier delivers knowledge alongside metal. They should offer application-specific metallurgical consulting. When you encounter a failure, they should analyze the cracked tool and recommend an engineered alternative. They must also provide verifiable heat-treatment data sheets to ensure your thermal processing succeeds.
Material selection is fundamentally an exercise in risk mitigation. Relying on outdated grades simply because they are familiar introduces unnecessary vulnerabilities into your manufacturing process. By understanding the specific failure modes of your tooling, you can select alloys specifically engineered to counteract those forces.
Upgrading from conventional D2 to advanced matrix grades like DC53 often reduces overall downtime and enhances long-term profitability. It eliminates unplanned maintenance and keeps production lines running smoothly. We advise engineering and procurement teams to audit their most frequent tooling failures. Document where chips occur and where wear forces early resharpening. Then, consult with a metallurgically certified supplier to run a pilot test using an upgraded tool steel grade.
A: Cold work tool steels are engineered for high-carbon wear resistance at room temperatures. They excel in stamping, shearing, and blanking. Hot work tool steels, conversely, contain lower carbon but higher alloying elements like molybdenum and tungsten. This gives them "red-hardness," allowing them to maintain their structural integrity and withstand thermal fatigue at elevated temperatures typical in forging and die casting.
A: D2 contains massive, blocky primary chromium carbides. While these carbides provide excellent wear resistance, they act as severe stress concentrators. Under high-impact loads, such as the snap-through shock of punching, micro-cracks initiate at these carbide boundaries. This structural unevenness makes D2 highly susceptible to chipping. Upgrading to a matrix steel resolves this issue.
A: Yes, but it carries a high risk of cracking due to the extreme carbon content. Welding cold work tool steel requires strict protocols. You must pre-heat the tool to specific temperatures before striking an arc. You must use specialized filler metal, maintain interpass temperatures, and perform an immediate post-weld tempering cycle to relieve induced stresses.
A: PM tool steel justifies its premium price only in specific scenarios. It becomes highly cost-effective when severe abrasive wear is the definitive bottleneck in multi-million part runs. If your tools fail via chipping, or if production volumes are low, the high raw material and complex machining costs of PM steel will not provide a positive return on investment.
